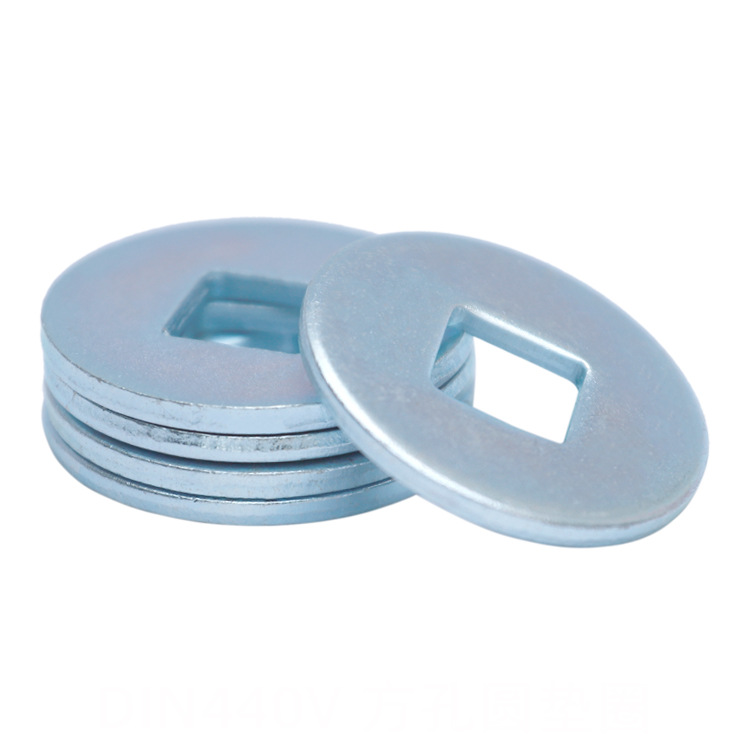

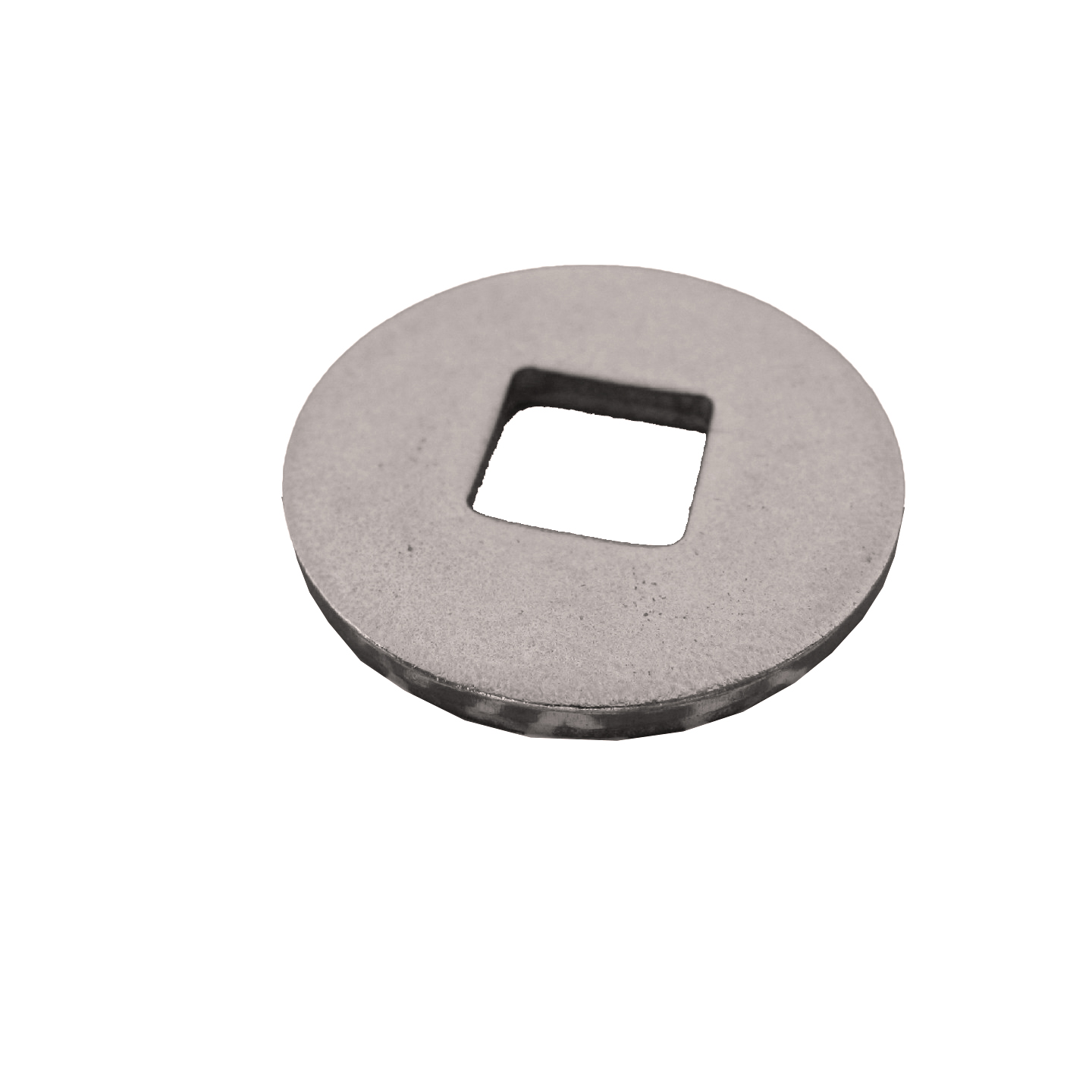

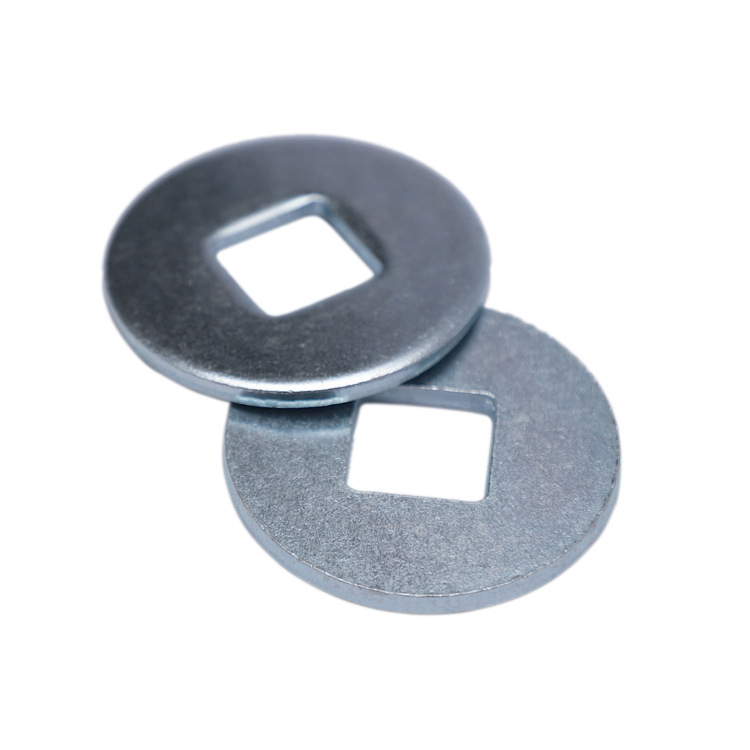

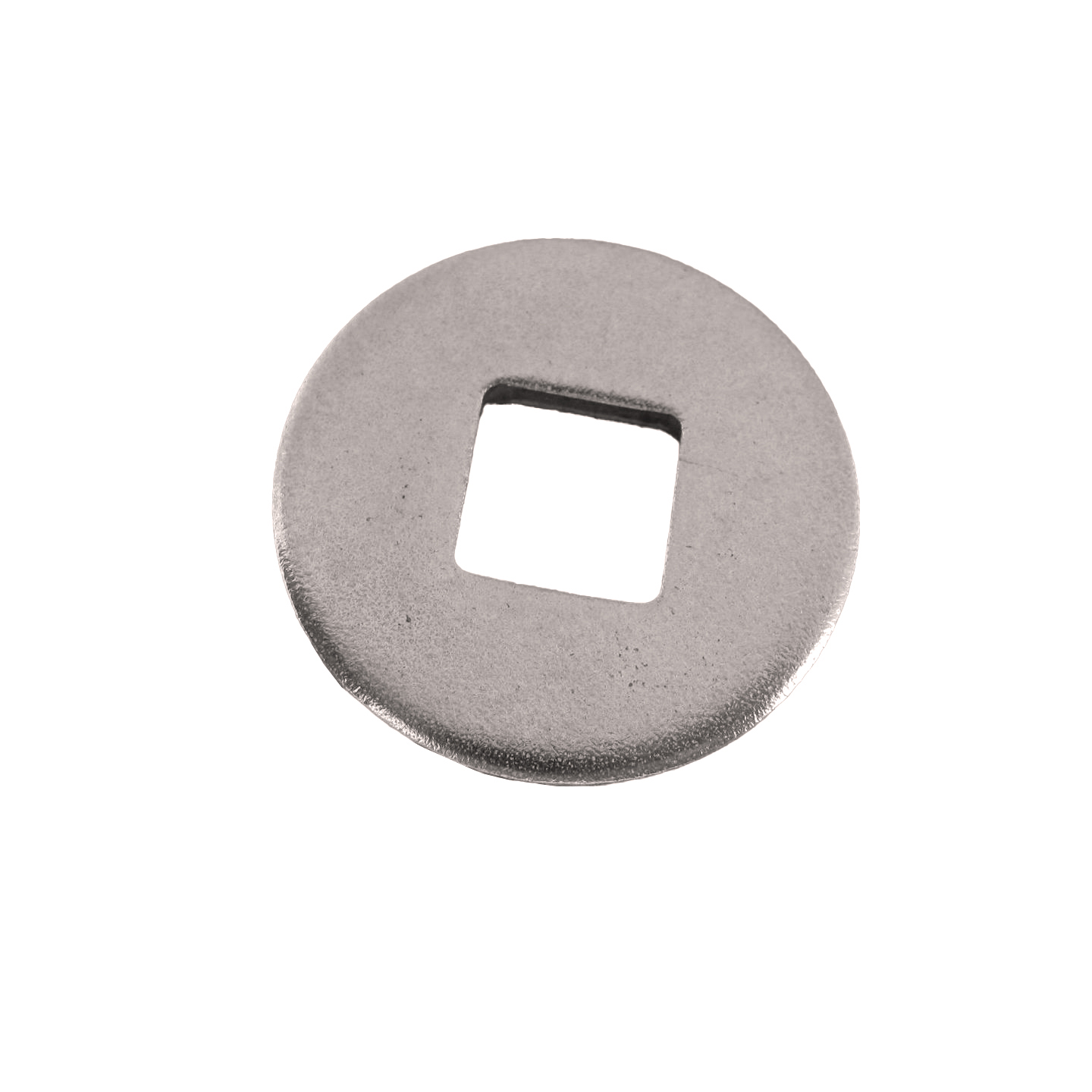

DIN 440 Extra large washers with square hole for use in timber constructions DIN 440 - 2001





Product Description



Product Name: Extra large washers with square hole for use in timber constructions DIN 440 - 2001
Standard: DIN 440 - 2001
Material: Carbon steel and stainless steel
Size: Reference standards and according to customer requirements
Finished: Zinc Plated,Hot Dip Galvanized Steel,Dacromet,Nickel Plated,Black Oxide,Plain
Delivery time: Normally in 30-40 days.
Thread Position / Thread Type: /
Internal Driving: / External Driving: /
Locking Type: / Shank: /
Point: / Mark: As required







Screw Thread
d
M5 M6 M8 M10 M12 M16 M20 M22
a min=nominal size
max
dc max=nominal size
min
h Nominal Size
max
min
per 1000 units ≈ kg
For Nominal Thread Diameter
5.5 6.6 9 11 14 18 22 24
5.8 6.96 9.36 11.43 14.43 18.7 22.84 24.84
18 22 28 34 44 56 72 80
16.9 20.7 26.7 32.4 42.4 54.1 70.1 78.1
2 2 3 3 4 5 6 6
2.3 2.3 3.6 3.6 4.6 6 7 7
1.7 1.7 2.4 2.4 3.4 4 5 5
3.52 5.28 12.6 18.5 41.6 84.0 169 210
- - - - - - - -
①,Material: Steel, Hardness 100 HV, Hard class 100 HV to 250 HV
for nominal thicknesses h > 1.2 HV 30






About Washers

Types of Washers

<

Flat washers are primarily used to displace the load of a fastener head or a nut on a threaded joint. They can cover holes and act as spacers.

Lock washers resist vibration to prevent a threaded joint from loosening.

Cushioning washers protect joints and dampen vibration.

Sealing washers prevent fluids from leaking around connectors.

Countersunk washers give flat and oval head screws a neat, finished appearance.

Sleeve washers act as a barrier around fasteners to block electrical current and prevent corrosion from mating different material.

Square-neck bolt washers have teeth to dig into soft material to prevent rotation.

https://images1.mcmaster.com/mvC/contents/gfx/small/b01-alignment-wave-washers.png?ver=1418048149

Leveling and wave washers compensate for tolerance variations and uneven surfaces.

https://images1.mcmaster.com/mvC/contents/gfx/small/b01-blind-washer-gis.png?ver=1413989292

Washers for blind rivets are also known as backup washers and are for use with blind rivets for extra support when fastening into soft material.

Notched washers have indentations for temporarily securing them with nails to keep them from rotating during installation. They have large ODs to prevent screws from sinking into wood surfaces.

https://images1.mcmaster.com/mvC/contents/gfx/small/b01-curved-washer-gis.png?ver=1413989931

Curved washers are designed to fit round surfaces such as tubes and pipe.

Slotted washers allow you to install and remove them without completely disassembling your joints.

Washers for tie-down straps have bent sides that are good for holding and aligning tie-down straps.

Washers for electrical terminals prevent wires under screw heads from slipping out so electrical connections stay intact.

Washers for foam insulation and plaster are used to repair foam insulation and sagging, cracked plaster.

Clipped washers fit where standard flat washers can't and won't rotate when you position the flat edge against a surface.



Comparing Washer Materials and Coatings



<!



The addition of a finish increases the corrosion resistance of the materials shown above.

Black Oxide—This finish gives mild corrosion resistance in dry environments.

Zinc and Zinc Yellow-Chromate Plated—These finishes provide corrosion resistance in wet environments.

Hot-Dipped Galvanized—This finish has 10 times more corrosion resistance than zinc and zinc yellow-chromate platings.

Cadmium Plated—This finish resists corrosion from salt water.

PassivatedThis finish adds another level of corrosion resistance to stainless steel.

Zinc-Aluminum Coated—Also known as armor coat and ultra coat, this coating resists corrosion from chemicals and passes the 1,000-hour salt-spray test.

Black Ultra-Corrosion-Resistant Coated—This durable semigloss coating resists corrosion from acids and chemicals and passes the 1,000-hour salt-spray test.
