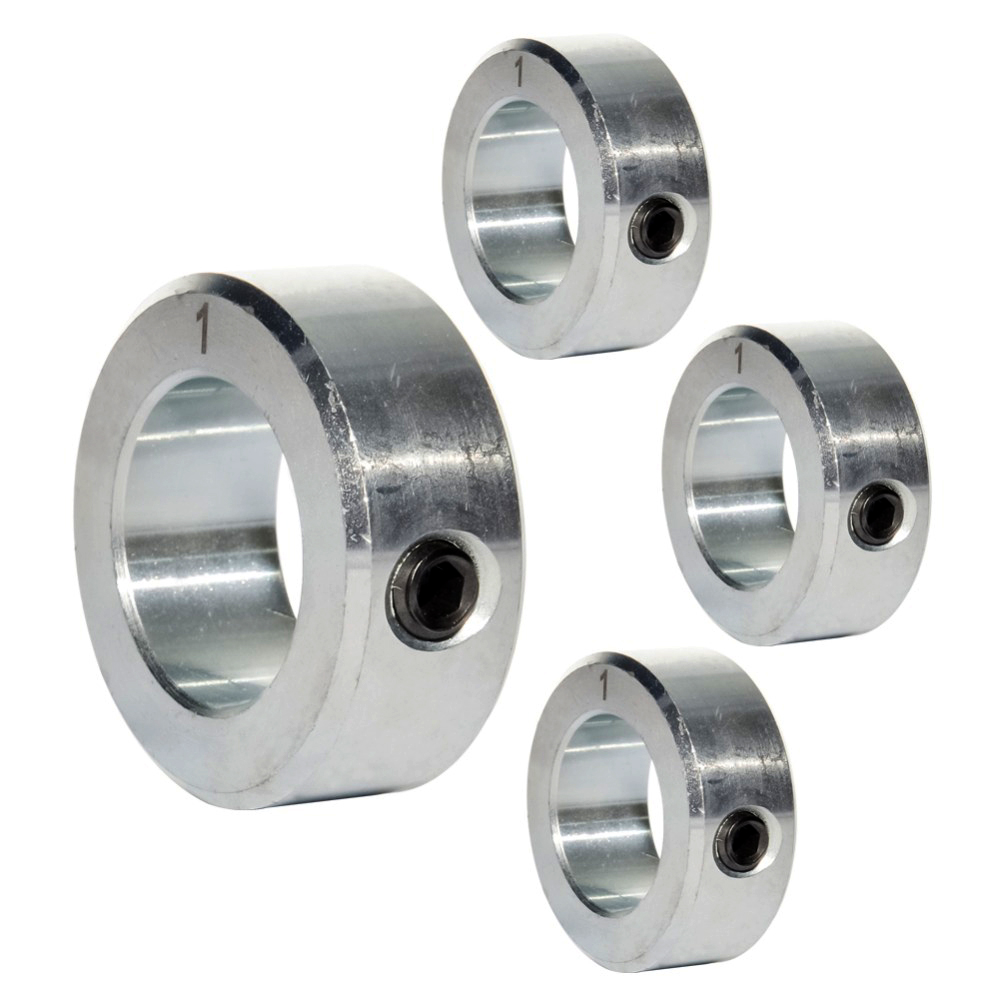

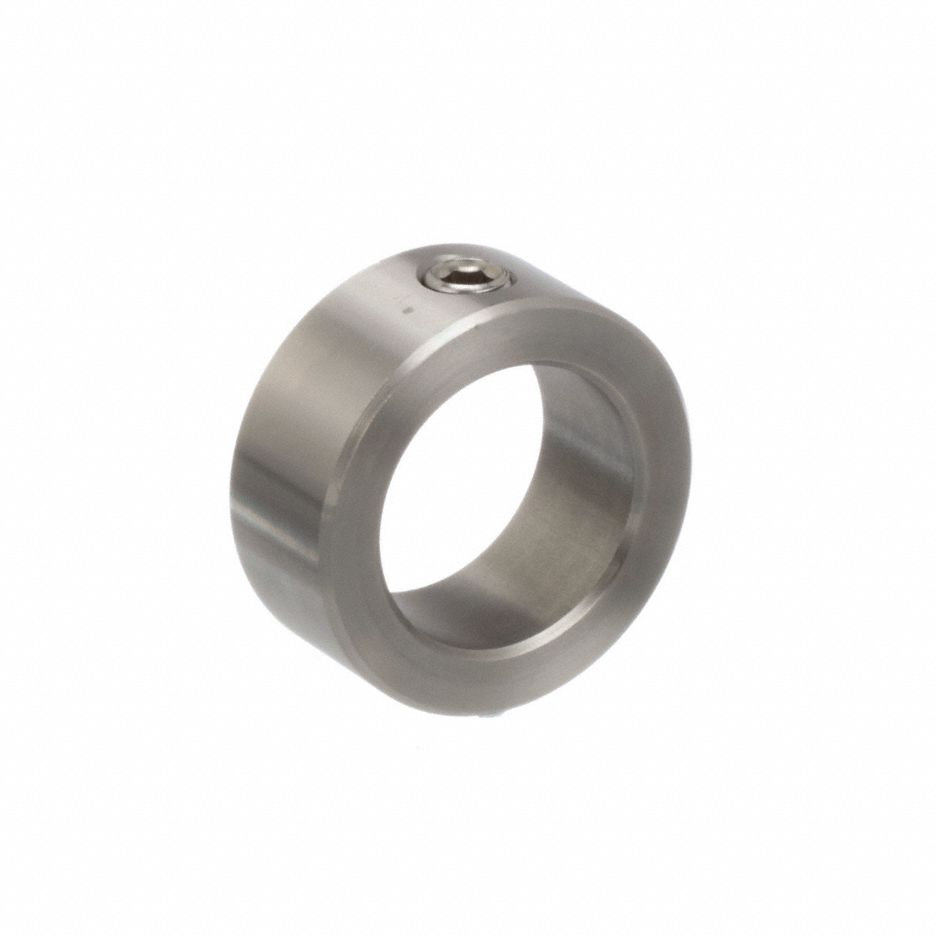

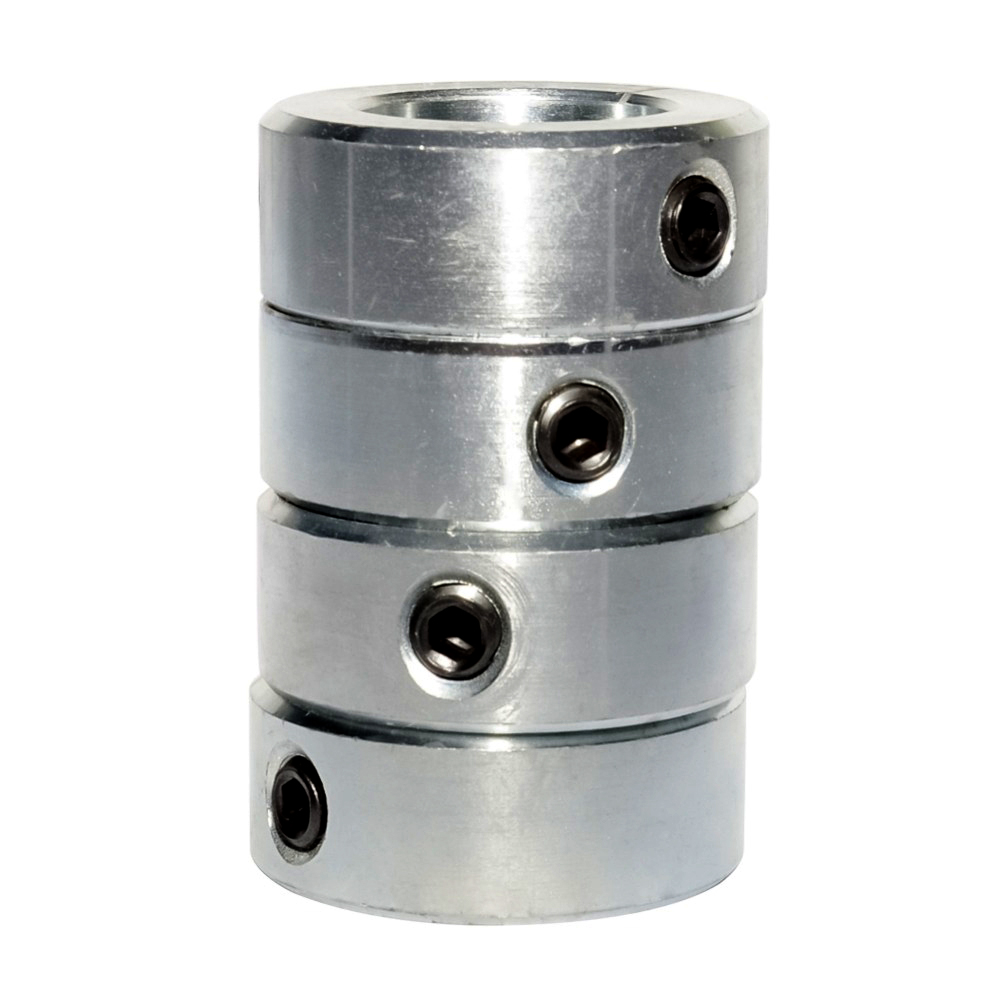

DIN 705 Adjusting Rings DIN 705 - 2007
| Product Name: | Adjusting Rings DIN 705 - 2007 | |
| Standard: | DIN 705 - 2007 |  |
| Material: | Carbon steel and stainless steel | |
| Size: | Reference standards and according to customer requirements | |
| Finished: | Zinc Plated,Hot Dip Galvanized Steel,Dacromet,Nickel Plated,Black Oxide,Plain | |
| Delivery time: | Normally in 30-40 days. | |
| Thread Position | Internal | Thread Type: | Metric [M] |
| Internal Driving: | / | External Driving: | Cylindrical |
| Locking Type: | Head with Hole | Shank: | / |
| Point: | / | Mark: | As required |
| ①,In contrast to grooved and tapered pins, grub screws (up to M10 with slot according to DIN EN 27434 and AB M12 with hexagon socket according to DIN EN ISO 4027) are part of the adjusting ring. ②,Grooved pins: According to DIN EN ISO 8744. Instead of tapered grooved pins according to DIN EN ISO 8744, dowel pins according to DIN EN ISO 8752 or spiral dowel pins according to DIN EN ISO 8750 may also be used. taper pins: If taper pins according to DIN EN 22339 are used, the hole must be reamed with a 1:50 taper when mounting. ③,Mateial: a)Steel, Material group: Free cutting steel; Hardness: 100 HV to 175 HV Standard DIN EN 10087 b)Stainless steel, Material group: A1; Hardness: 140 HV to 240 HV Standard DIN EN 10088-3 c)Non-ferrous metal, Material group: CU3 Standard DIN EN 28839 |
About Washers
Types of Washers
<
Flat washers are primarily used to displace the load of a fastener head or a nut on a threaded joint. They can cover holes and act as spacers.
Lock washers resist vibration to prevent a threaded joint from loosening.
Cushioning washers protect joints and dampen vibration.
Sealing washers prevent fluids from leaking around connectors.
Countersunk washers give flat and oval head screws a neat, finished appearance.
Sleeve washers act as a barrier around fasteners to block electrical current and prevent corrosion from mating different material.
Square-neck bolt washers have teeth to dig into soft material to prevent rotation.
Leveling and wave washers compensate for tolerance variations and uneven surfaces.
Washers for blind rivets are also known as backup washers and are for use with blind rivets for extra support when fastening into soft material.
Notched washers have indentations for temporarily securing them with nails to keep them from rotating during installation. They have large ODs to prevent screws from sinking into wood surfaces.
Curved washers are designed to fit round surfaces such as tubes and pipe.
Slotted washers allow you to install and remove them without completely disassembling your joints.
Washers for tie-down straps have bent sides that are good for holding and aligning tie-down straps.
Washers for electrical terminals prevent wires under screw heads from slipping out so electrical connections stay intact.
Washers for foam insulation and plaster are used to repair foam insulation and sagging, cracked plaster.
Clipped washers fit where standard flat washers can't and won't rotate when you position the flat edge against a surface.
Comparing Washer Materials and Coatings
<!
The addition of a finish increases the corrosion resistance of the materials shown above.
Black Oxide—This finish gives mild corrosion resistance in dry environments.
Zinc and Zinc Yellow-Chromate Plated—These finishes provide corrosion resistance in wet environments.
Hot-Dipped Galvanized—This finish has 10 times more corrosion resistance than zinc and zinc yellow-chromate platings.
Cadmium Plated—This finish resists corrosion from salt water.
Passivated—This finish adds another level of corrosion resistance to stainless steel.
Zinc-Aluminum Coated—Also known as armor coat and ultra coat, this coating resists corrosion from chemicals and passes the 1,000-hour salt-spray test.
Black Ultra-Corrosion-Resistant Coated—This durable semigloss coating resists corrosion from acids and chemicals and passes the 1,000-hour salt-spray test.
|
