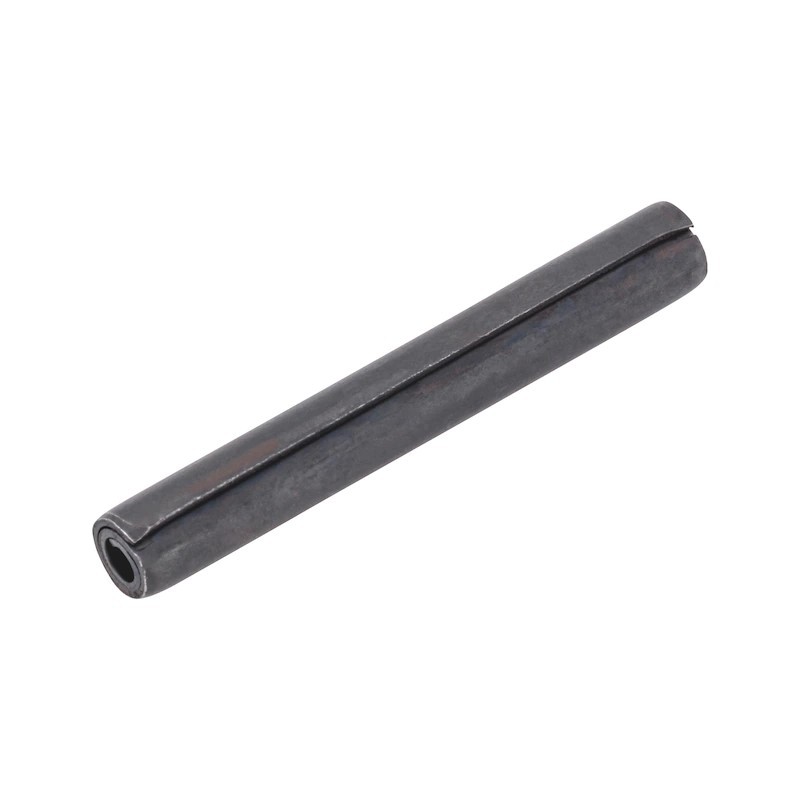

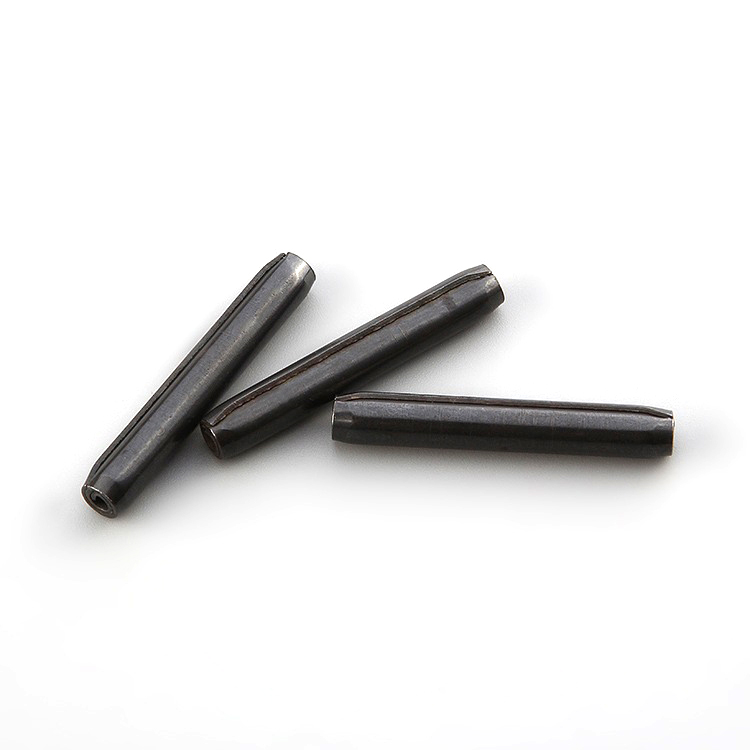

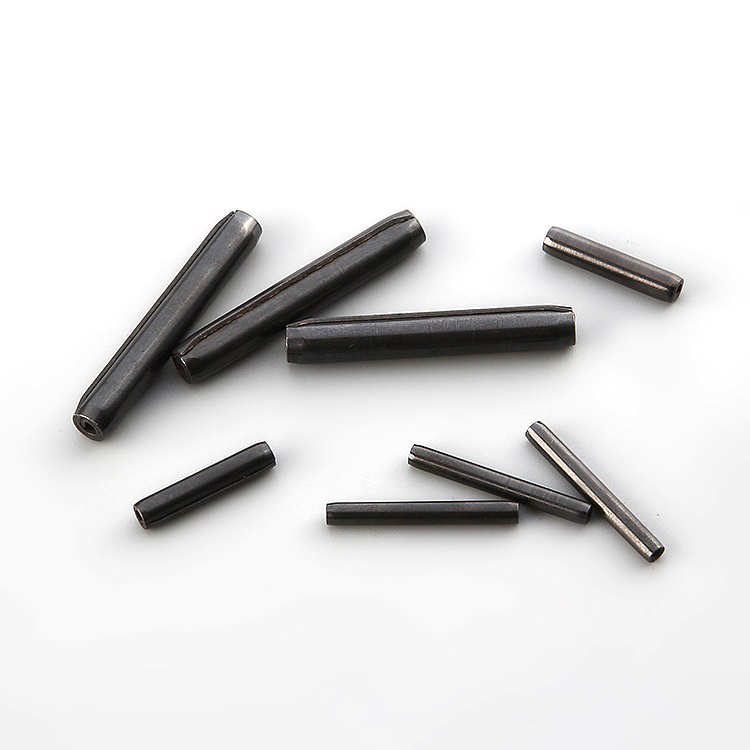

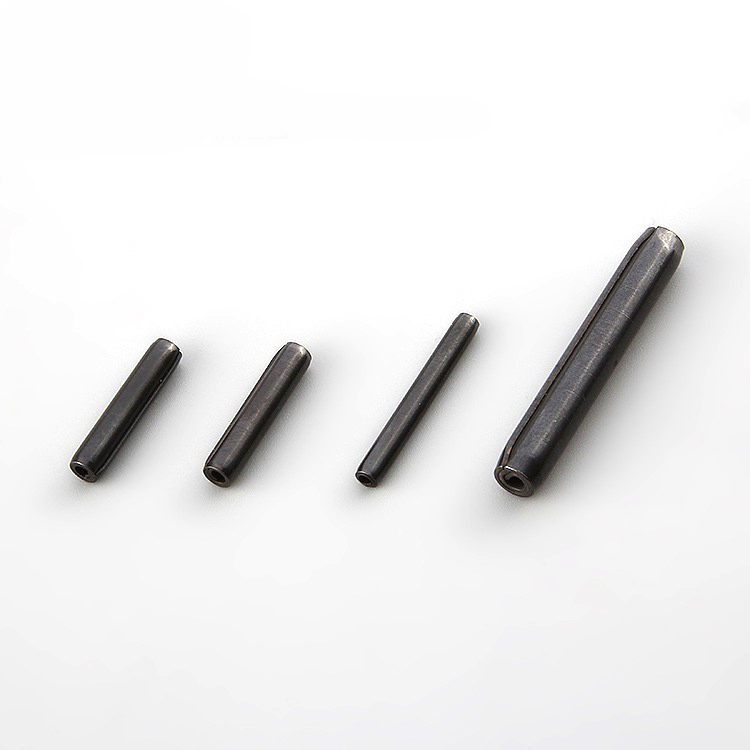

DIN 7343 Spring-type parallel pins-Coiled,standard duty DIN 7343 - 1969





Product Description



Product Name: Spring-type parallel pins-Coiled,standard duty DIN 7343 - 1969
Standard: DIN 7343 - 1969
Material: Carbon steel and stainless steel
Size: Reference standards and according to customer requirements
Finished: Zinc Plated,Hot Dip Galvanized Steel,Dacromet,Nickel Plated,Black Oxide,Plain
Delivery time: Normally in 30-40 days.
Thread Position / Thread Type: /
Internal Driving: / External Driving: Cylindrical
Locking Type: / Shank: /
Point: Tubular Mark: As required







Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
Φ0.8 Φ1 Φ1.2 Φ1.5 Φ2 Φ2.5 Φ3 Φ3.5
α ≈
s
d min=nominal size
max
d2 max=nominal size
min
Minimum shear strength, single (kN)
Minimum Double Shear,kN
0.2 0.3 0.4 0.5 0.7 0.8 1 1.2
0.07 0.08 0.1 0.13 0.17 0.21 0.25 0.29
0.85 1.1 1.3 1.62 2.15 2.65 3.15 3.67
0.9 1.15 1.4 1.72 2.25 2.8 3.3 3.84
0.75 0.95 1.15 1.4 1.9 2.35 2.85 3.35
0.7 0.85 1.05 1.3 1.75 2.2 2.7 3.15
0.2058 0.294 0.441 0.7154 1.2642 1.9012 2.7048 3.6946
0.4116 0.588 0.882 1.4308 2.5284 3.8024 5.4096 7.3892
Weight of per 1000 steel products(≈kg)
- - - - - - - -
Nominal Diameter
d
Φ4 Φ5 Φ6 Φ8 Φ10 Φ12 Φ14 Φ16
α ≈
s
d min=nominal size
max
d2 max=nominal size
min
Minimum shear strength, single (kN)
Minimum Double Shear,kN
1.3 1.7 2 3 3 4 4.5 5
0.33 0.42 0.5 0.67 0.84 1 1.2 1.3
4.2 5.25 6.25 8.35 10.45 12.5 14.55 16.55
4.4 5.5 6.5 8.6 10.8 12.85 14.95 17
3.8 4.8 5.8 7.75 9.6 11.5 13.5 15.4
3.6 4.5 5.4 7.25 9.0 10.8 12.6 14.4
4.8314 7.4872 10.829 19.208 30.4976 43.953 60.3876 74.529
9.6628 14.9744 21.658 38.416 60.9952 87.906 120.7752 149.058
Weight of per 1000 steel products(≈kg)
- - - - - - - -
①,Material:
a)Ck67 DIN 17222，Hardness HV=416~524kp/mm2
b)Other materials by agreement
