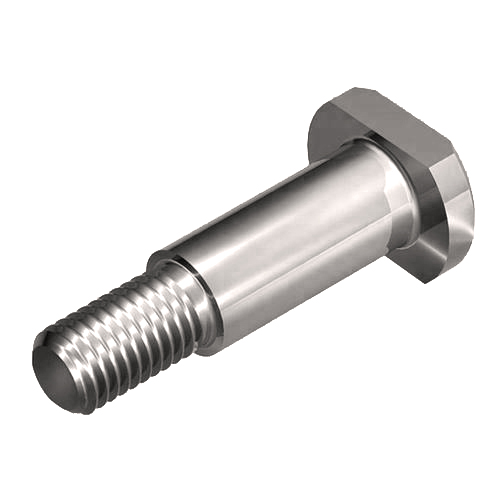

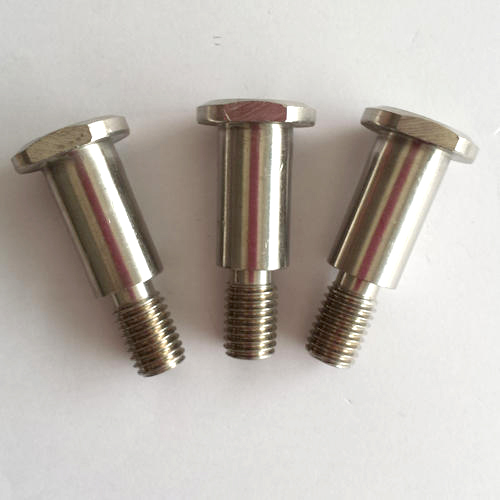

DIN 1445 Clevis Pins with Head and Threaded Portion DIN 1445 - 2011





Product Description



Product Name: Clevis Pins with Head and Threaded Portion DIN 1445 - 2011
Standard: DIN 1445 - 2011
Material: Carbon steel and stainless steel
Size: Reference standards and according to customer requirements
Finished: Zinc Plated,Hot Dip Galvanized Steel,Dacromet,Nickel Plated,Black Oxide,Plain
Delivery time: Normally in 30-40 days.
Thread Position External Thread Type: Metric [M]
Internal Driving: / External Driving: Tee
Locking Type: / Shank: Shoulder
Point: Flat Point Mark: As required

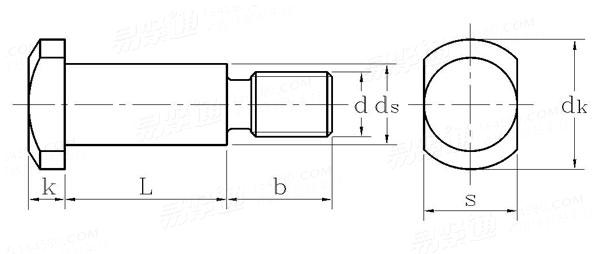

Size
8 10 12 14 16 18 20 22 24 27 30
ds max
min
b min
d
P Pitch
d3 max=nominal size（h14）
min
k Nominal Size（js14）
max
min
r
s max
min
z2 ≈
8 10 12 14 16 18 20 22 24 27 30
7.91 9.91 11.89 13.89 15.89 17.89 19.87 21.87 23.87 26.87 29.87
11 14 17 20 20 20 25 25 29 29 36
M6 M8 M10 M12 M12 M12 M16 M16 M20 M20 M24
1 1.25 1.5 1.75 1.75 1.75 2 2 2.5 2.5 3
14 18 20 22 25 28 30 33 36 40 44
13.57 17.57 19.48 21.48 24.48 27.48 29.48 32.38 35.38 39.38 43.38
3 4 4 4 4.5 5 5 5.5 6 6 8
3.125 4.15 4.15 4.15 4.65 5.15 5.15 5.65 6.15 6.15 8.18
2.875 3.85 3.85 3.85 4.35 4.85 4.85 5.35 5.85 5.85 7.82
0.6 0.6 0.6 0.6 0.6 1.0 1.0 1.0 1.0 1.0 1.0
11 13 17 19 22 24 27 30 32 36 36
10.73 12.73 16.73 18.67 21.67 23.67 26.67 29.67 31.38 35.38 35.38
1.0 1.0 1.6 1.6 1.6 1.6 2.0 2.0 2.0 2.0 2.0
Size
33 36 40 45 50 55 60 70 80 90 100
ds max
min
b min
d
P Pitch
d3 max=nominal size（h14）
min
k Nominal Size（js14）
max
min
r
s max
min
z2 ≈
33 36 40 45 50 55 60 70 80 90 100
32.84 35.84 39.84 44.84 49.84 54.81 59.81 69.81 79.81 89.78 99.78
36 39 42 45 49 52 58 61 68 78 84
M24 M27 M30 M33 M36 M39 M42 M45 M52 M56 M64
3 3 3.5 3.5 4 4 4.5 4.5 5 5.5 6
47 50 55 60 66 72 78 90 100 110 120
46.38 49.38 54.26 59.26 65.26 71.26 77.26 89.13 99.13 109.13 119.13
8 8 8 9 9 11 12 13 13 13 13
8.18 8.18 8.18 9.18 9.18 11.215 12.215 13.215 13.215 13.215 13.215
7.82 7.82 7.82 8.82 8.82 10.785 11.785 12.785 12.785 12.785 12.785
1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
41 46 50 55 60 65 70 80 90 100 110
40.38 45.38 49.38 54.26 59.26 64.26 69.26 79.26 89.13 99.13 109.13
2.0 2.0 2.0 2.0 2.0 3.0 3.0 3.0 3.0 3.0 3.0
①,Material: Free-cutting steel (St), hardness 125HV to 245HV；other materials by agreement
