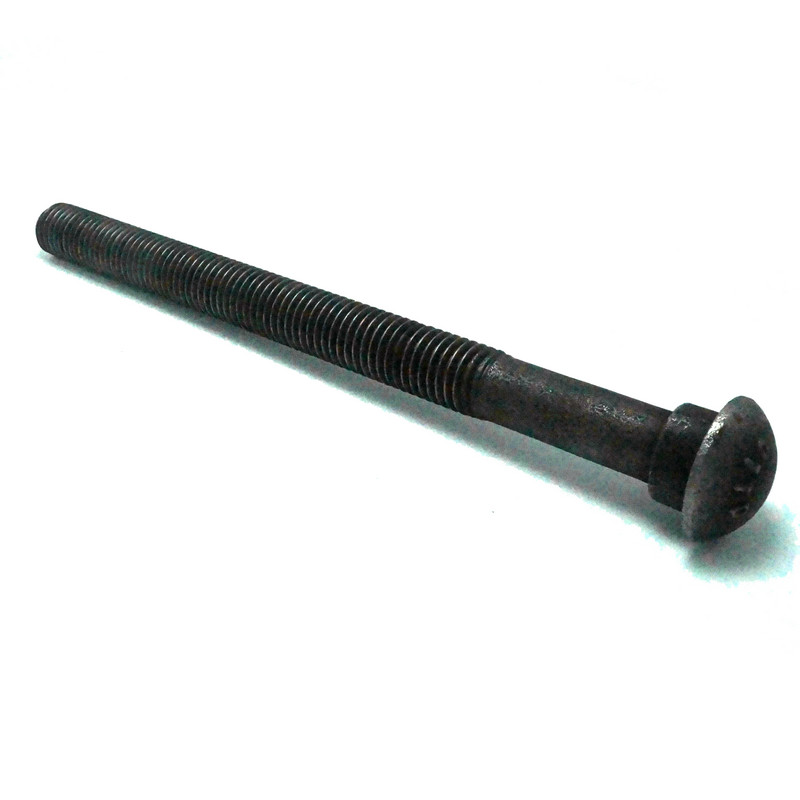

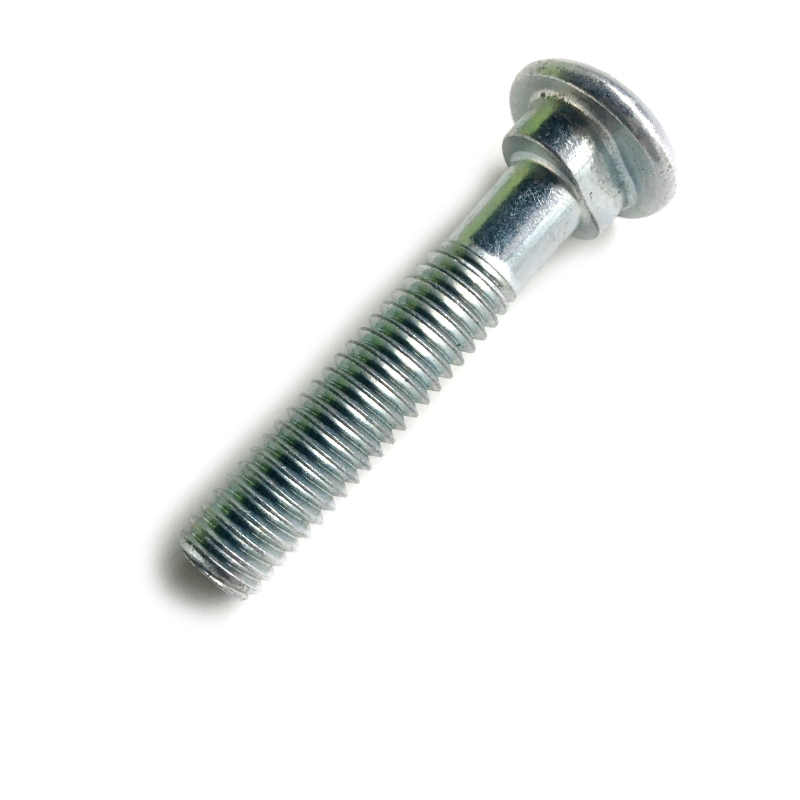

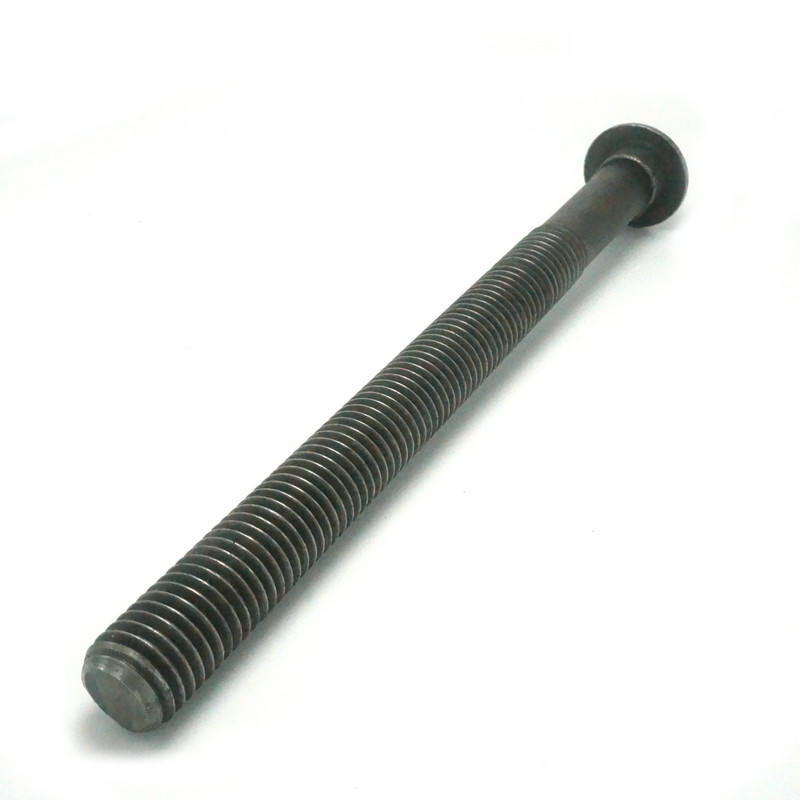

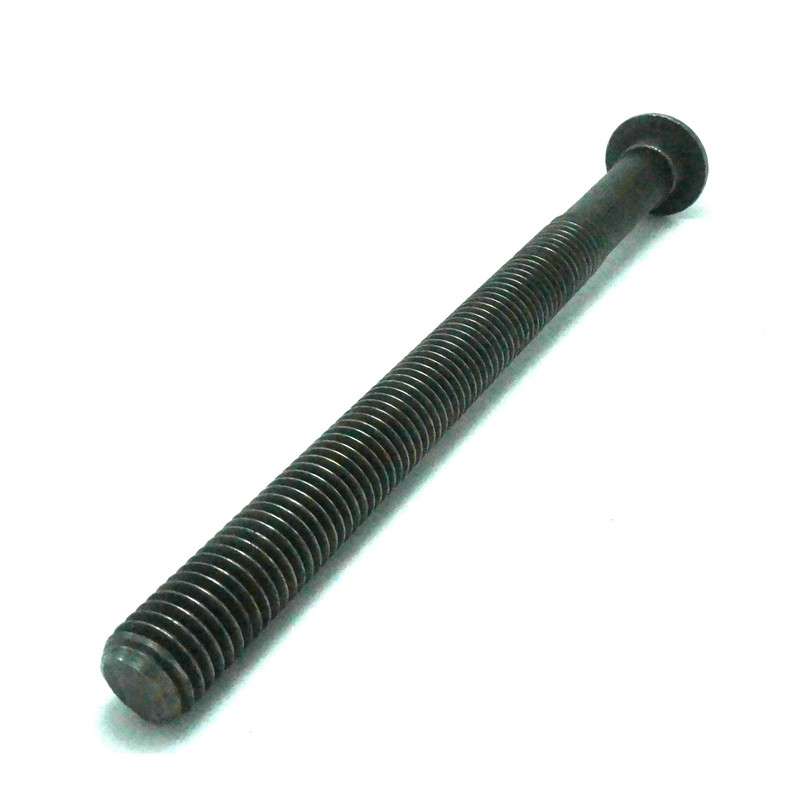

DIN 5903-1 Fish Bolts - Part 1 with Round Head and Oval Neck DIN 5903-1 - 1997





Product Description



Product Name: Fish Bolts - Part 1 with Round Head and Oval Neck DIN 5903-1 - 1997
Standard: DIN 5903-1 - 1997
Material: Carbon steel and stainless steel
Size: Reference standards and according to customer requirements
Finished: Zinc Plated,Hot Dip Galvanized Steel,Dacromet,Nickel Plated,Black Oxide,Plain
Delivery time: Normally in 30-40 days.
Thread Position External Thread Type: Metric [M]
Internal Driving: / External Driving: Round Head
Locking Type: Oval Neck Shank: Normal Shank
Point: Flat Point Mark: As required







Screw Thread
d
M10 M12 M16 M20 M22
P Pitch
b min=nominal size
max
F max
min
dk Nominal Size
max
min
k1 Nominal Size
max
min
k Nominal Size
max
min
s Nominal Size
max
min
1.5 1.75 2 2.5 2.5
19 21 27 29 34
22 24.5 31 34 39
14 18 22 30 33
13.3 17.3 21.16 29.16 32
19 24 30 38 42
19.65 24.65 30.65 38.8 42.8
18.35 23.35 29.35 37.2 41.2
5 7 8 10 12
5.375 7.45 8.45 10.45 12.55
4.625 6.55 7.55 9.55 11.45
6 8 10 12.5 14
6.6 8.75 10.75 13.4 14.9
5.4 7.25 9.25 11.6 13.1
10 12 16 20 22
10.58 12.7 16.7 20.84 22.84
9.42 11.3 15.3 19.16 21.16






About Rounded Head Screws

Comparing Materials by Strength and Corrosion Resistance

Use the chart below as a guide to understanding the relative strength and corrosion resistance of the screws and bolts we offer.

<![if !vml]>

Understanding Thread Size

Inch thread sizes are specified by diameter and threads per inch. For those with a diameter smaller than 1/4", diameter is indicated by a number (e.g., #1 or No. 1).

Metric thread sizes are specified by diameter and pitch.
